Sensors &
Transmitter System

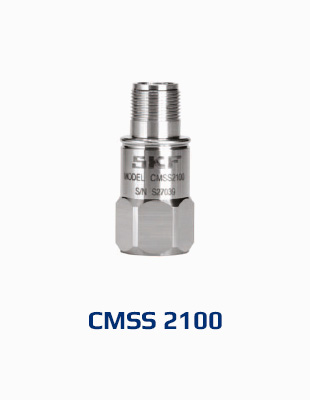

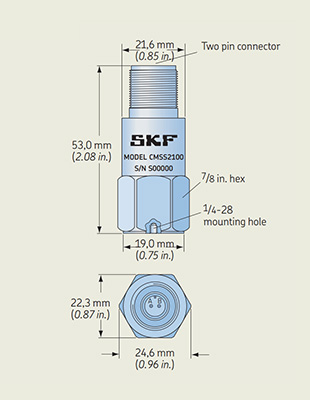

CMSS 2100
Sensitivity : 100mV/g
Acceleration range : 80g Peak
Frequency range : 0.5Hz ~ 14,000Hz(±3dB)
Power requirements : 18 to 30Vdc, 2 to 4mA
Temperature range : -50℃ ~ 120℃
Two mounting studs (1/4-28 and M8 × 1,25) provided
Connections:

– Pin A: Signal/Power
– Pin B: Common


Weight: 90 g (3 2 oz )
Case material: 316L stainless steel
1. General Purpose Sensors : CMSS 2100, CMSS 2200, CMSS 780C
2. Dual Sensors : CMSS 2100T, CMSS 2200T
3. Hazardous area approved Sensor : CMSS 786A-IS, CMSS 786A-D2
4. Hansford Sensor : HS-100(General Purpose Sensor), HS-173(Triax Sensor), etc

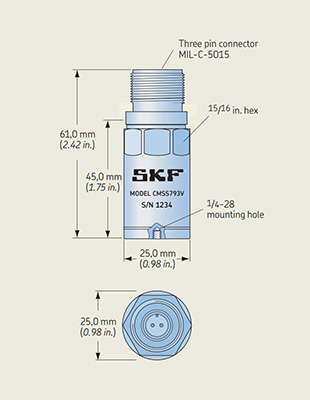

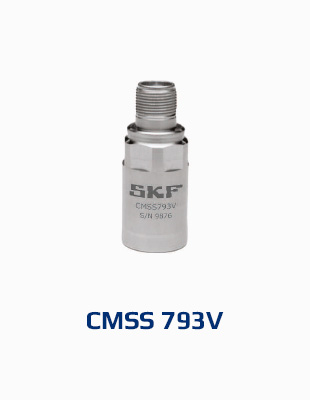

CMSS 793V
General Purpose
Sensitivity : 100mV/g
Acceleration range : 80g Peak
Frequency range : 0.8Hz ~ 15,000Hz(±3dB)
Power requirements : 18 to 30Vdc, 0.5 to 8mA
Temperature range : -55℃ ~ 140℃
Mounting: 1/4-28 tapped hole
Connections:

– Pin A: Signal/Power
– Pin B: Common


Weight: 145 g (5 1 oz )
Case material: 316L stainless steel
1. General Purpose Sensors : HS-100, HS-100S, HS-150
2. Dual Sensors : HS-150T, HS-150RT
3. Hazardous area approved Sensor : HS-100I, HS-100IS, HS-150I
4. Triax Sensor : HS-173
4~20mA Output Transmitter
CMCP 420VT Loop-Powered Vibration Velocity Transmitter
Velocity and Dynamic(100mV/g) Output
4~20mA Output
2Hz ~ 2kHz Frequency Response
Range : 0 ~ 25.4mm/s or 0 ~ 50.8mm/s
Supply Voltage : 22 ~ 36Vdc
Class I Division II Groups B-A Approved Standalone

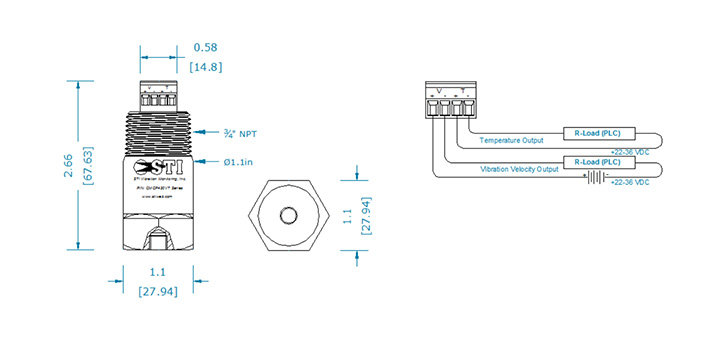

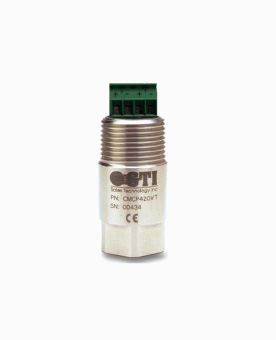

CMCP 420VT-T Dual Parameter Loop-Powered Vibration and Temperature Transmitter
Two Loop Powered 4~20mA outputs
Velocity RMS output & Temperature output
2Hz ~ 2kHz Frequency Response
Range : 0 ~ 25.4mm/s or 0 ~ 50.8mm/s, 0~100℃
Supply Voltage : 22 ~ 36Vdc
Class I Division II Groups B-A Approved Standalone
4~20mA Transmitters
CMCP525 Acceleration
Transmitter/Monitor
Accelerometer Input
Acceleration Output(g’s)
RMS or Peak Detection
100mV/g Input Std.
4-20 mA Output
2 Buffered Outputs
5 Selectable Ranges
Fault (OK) Detection
CSA & UL C1,D2
DIN Rail Mount
Optional HP & LP Filters
CMCP530 Velocity
Transmitter/Monitor
Accelerometer Input
Velocity Output
Transmitter or Monitor
RMS or Peak Detection
100 mV/g Input Std.
4-20 mA Outputs
2 Buffered Outputs
5 Selectable Ranges
Fault (OK) Detection
CSA & UL C1, D2
DIN Rail Mount
Optional HP & LP Filters
CMCP535 Displacement
Transmitter/Monitor
Velocity Input
Displacement Output
Transmitter or Monitor
Peak Detection
100 mV/in/sec Input
4-20 mA Output
2 Buffered Outputs
5 Selectable Ranges
Fault (OK) Detection
CSA & UL C1, D2
DIN Rail Mount
Optional HP & LP Filters

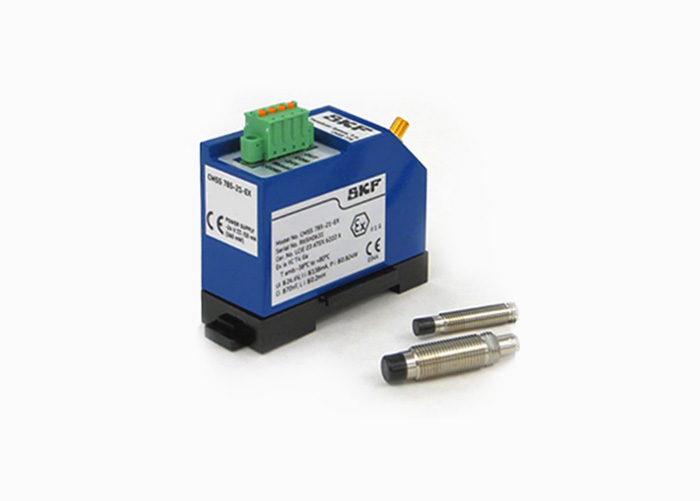

CMSS 785 Series

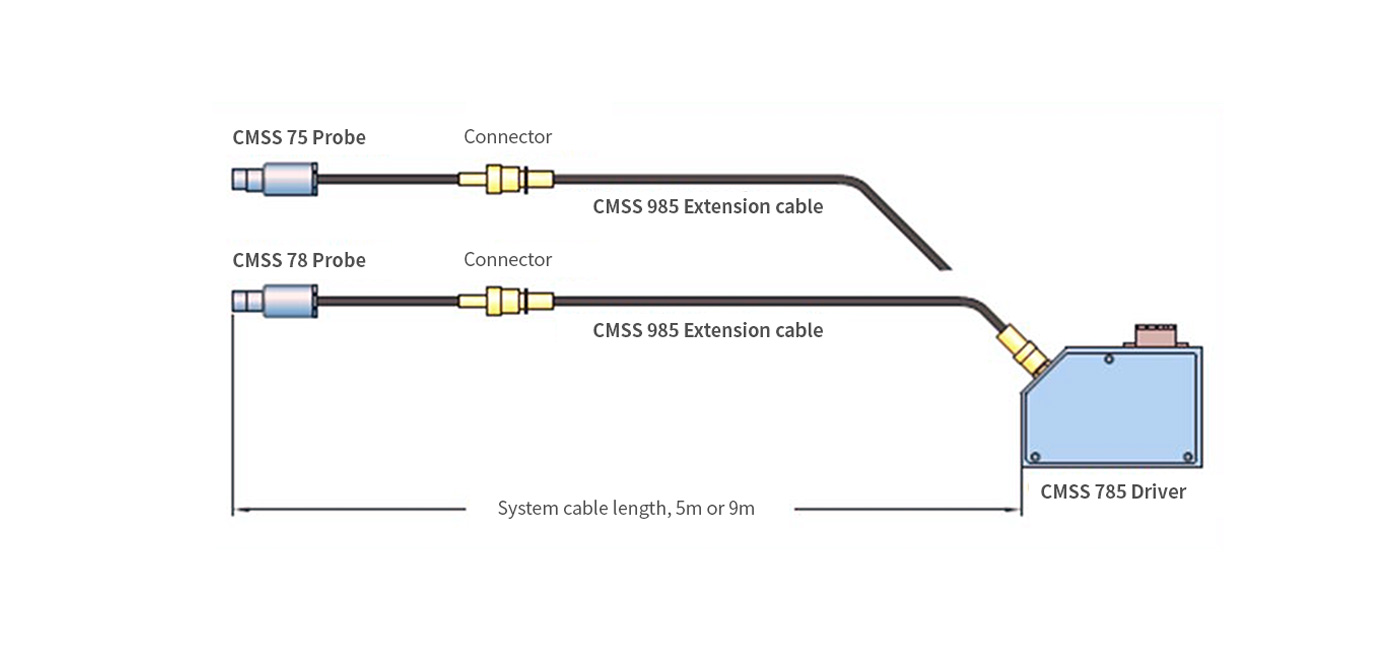

SKF CMSS 785 System
와전류 형태의 비접촉 변위 / 진동 시스템
Product characteristics
5mm & 8mm System
Measurement range : 0.25 to 2.25mm
Scale factor : 7.87V/mm(200mV/mil)
Maximal output voltage : -23Vdc
API standard 670
CE compliant
Intrinsically safe(CSA and ATEX)
Configuration
Introduction
Using detailed knowledge acquired from many years of supplying high quality sensorsto a broad spectrum of industry uses, VMS offers rugged connector cable for use with vibration transducersin the Pulp and Paper, Petrochemical, Steel, Mining and Construction, Metal Working and Machine Tool Industries.
The weakest part of any vibration monitoring system is the sensor and field cabling.
Selection of a quality sensor is the first importantstep towardsthe integrity of a system, but equally importantis the choice of mating connector cable.
Features
For use with the VMS range of vibration sensors
Rugged and cost-effective
Shielding for low-voltage dynamic vibration signals
Proven design
Isolated cable
IP 65 type for economical choice and suits applicationsin lighter industrial environments
IP68 type allow no ingress of dust and are suitable for continuousimmersion in water
Description

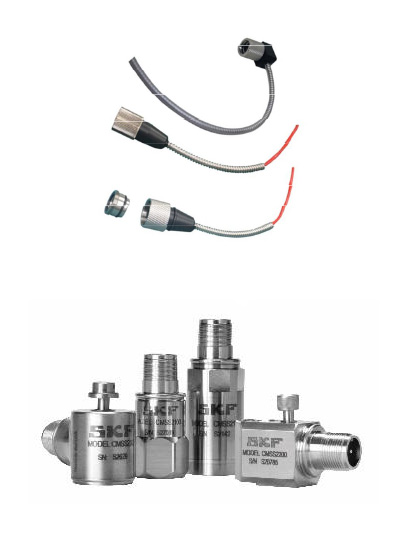

VMRS connector cable is designed for use with piezoelectric vibration sensors which require high specification shielded cable to maximize the quality of the signal transmitted to the monitoring system.
VMRS connector cable consists of a shielded twisted pair cable (with or without armor) integral with a connector made of high quality engineering plastic and sealed (IP65).
VMRS connector cable also provide IP68 type connector: an assembly with a twist lock and an assembly with a locking collar.
The locking collar is a threaded connector that threads onto an accompanying sensor adapter.
It is recommended to secure the sensor adapter to the accelerometer connector using thread lock(Loctite).
VMS’s IP65, IP68 VMRS Connector Cable
(top), and vibration sensors (lowest).
Specifications
Signal Cables

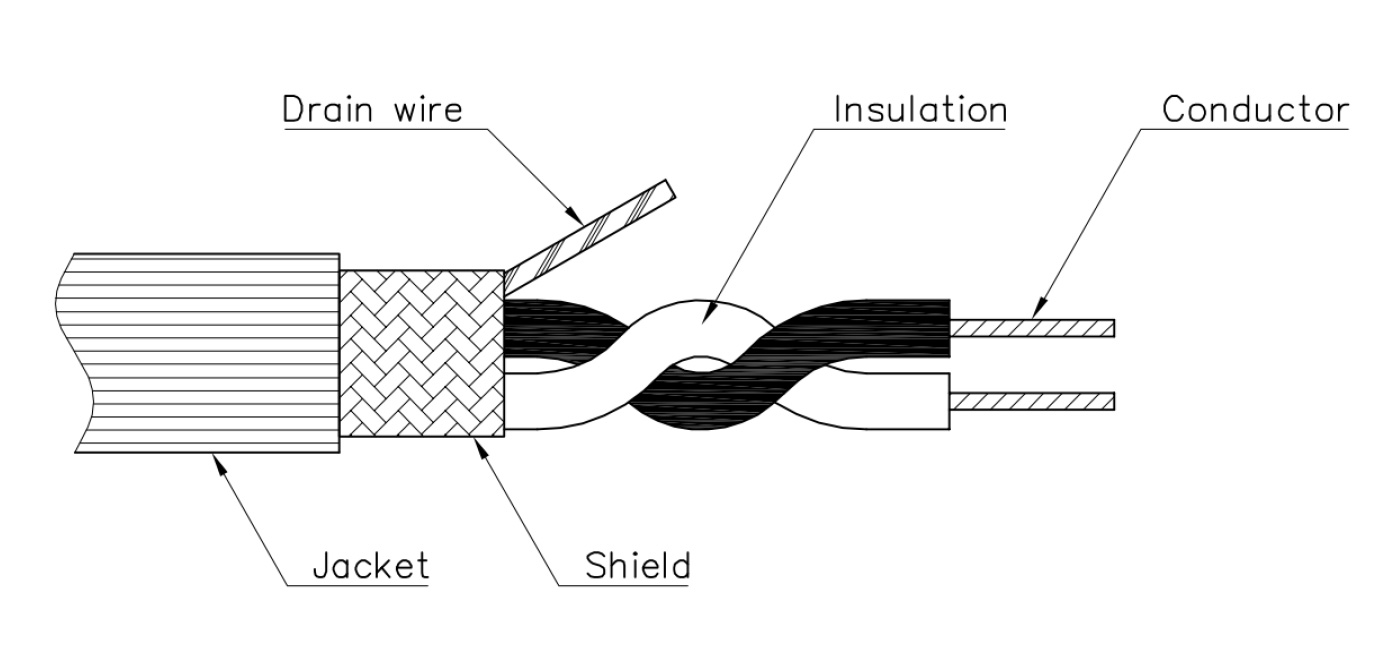

Two insulated conductors are cabled together with one uninsulated drain wire and two glass cord filters.
VMRS 0210-N-1P For general applications VMRS 0220-N-1P For high temperature applications VMRS 0295-M-1P For Marine applications
Conductors Tinned plated copper, Typ. 0.5 mm Conductors Tin plated copper, Typ. 0.25 mm2 Conductors Tin plated copper, Typ. 0.75 mm2
Color code · Power/Signal : Red
· Common : Black
· Outer Jacket : Blue
Color code · Power/Signal : Red
· Common : Black
· Outer Jacket : Red
Color code · Power/Signal : 1A (White)
· Common : 1B (White)
· Outer Jacket : Black
Outer Jacket Diameter Typ. 5.9 mm Outer Jacket Diameter Typ. 3 mm Outer Jacket Diameter Typ. 6.8 mm
Wire Materials All conductors, drain wires are of tin plated copper Wire Materials All conductors, drain wires are of tin plated copper Wire Materials All conductors, drain wires are of tin plated copper
Jacket material Urethane Jacket material Teflon Jacket material Polyolefin
Capacitance Typ. 75 pF/m Capacitance Typ. 75 pF/m Capacitance Typ. 100 pF/m
Resistance Typ. 0.0349 ohm/m Resistance Typ. 0.0392 ohm/m Resistance 0.026 ohm/m
Voltage Rating 30V RMS Voltage Rating 30V RMS Voltage Rating 250V RMS
Working Temperature -30℃ ~ 80℃ Working Temperature -30℃ ~ 200℃ Working Temperature -30℃ ~90℃
Heat and flame resistance Non-flame propagating Heat and flame resistance Non-flame propagating Heat and flame resistance Non-flame propagating
Meets ROHS requirement Meets ROHS requirement Meets ROHS requirement
Class certification ABS, BV, RINA, DNV, GL, KR, LR, NK, CCS
Halogen free compound (SHF1)
Fig 8. Connector Wiring Diagram
Installation considerations
Isolated cable
Within a single-shielded cable/connector assembly, “isolated” meansthe drain wire (and hence the shield) are NOT connected to the sensor.
Drain-wire (shield) must be connected to ground at the instrument.
Silicon grease
When assembling any cable/connectorto the vibration sensor, application of a small amount of silicon grease to the pin-contactsis recommended to ensure reliable operation over a long period.
Sensor installation kits available from VMS include the appropriate silicone grease.
Connector designs

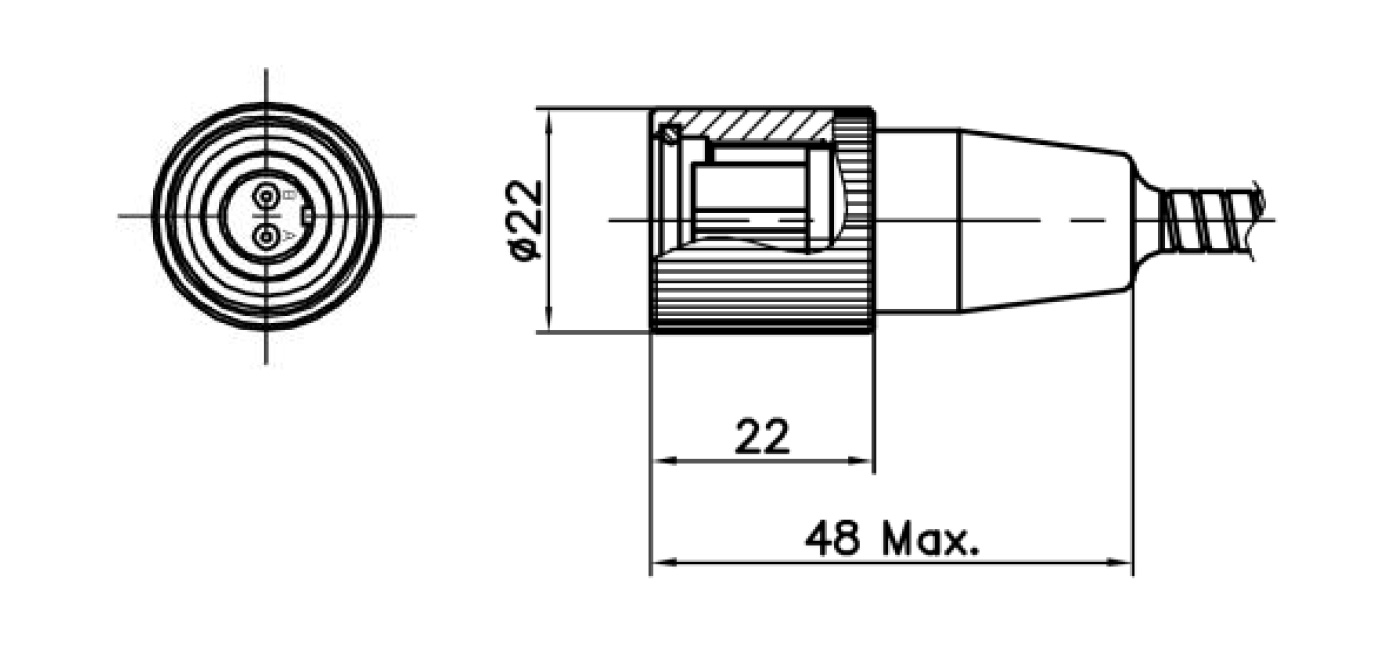

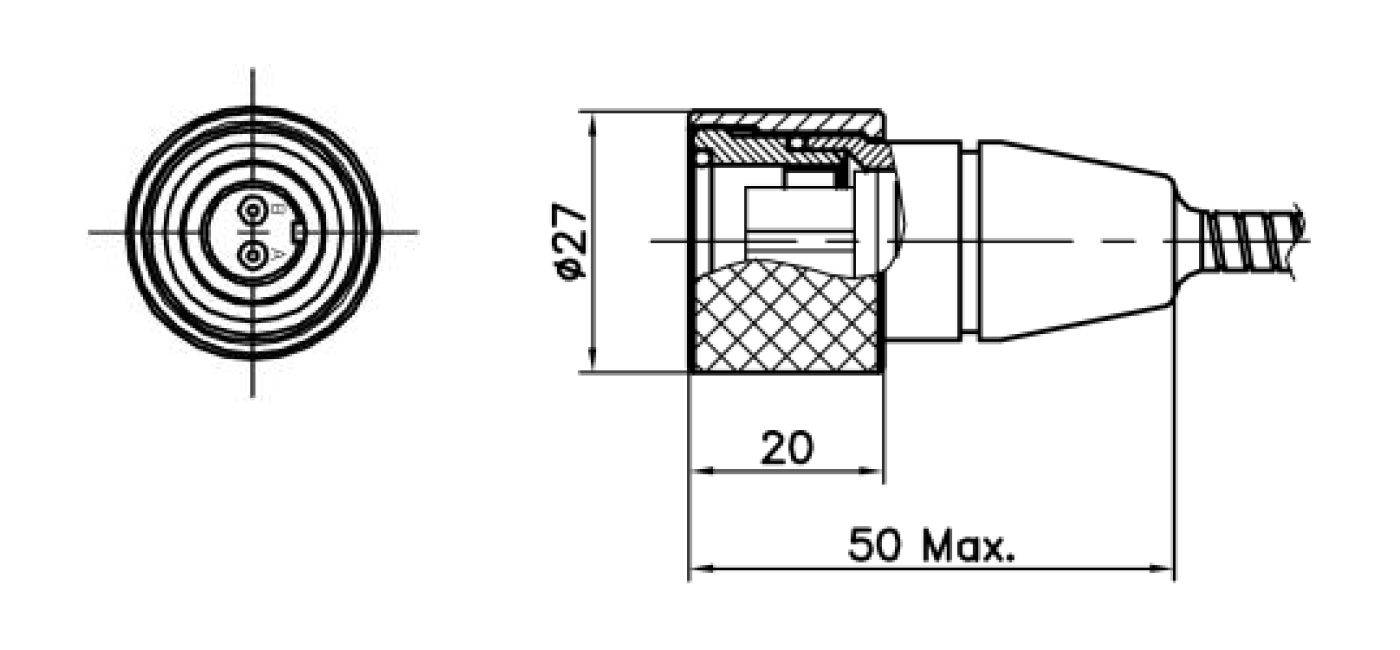

Fig 1. IP65, Straight Connector, MIL-C-5015Female
Fig 2. IP68, Straight Connector MIL-C-5015 Female
Cable assemblies
Fig. 3.

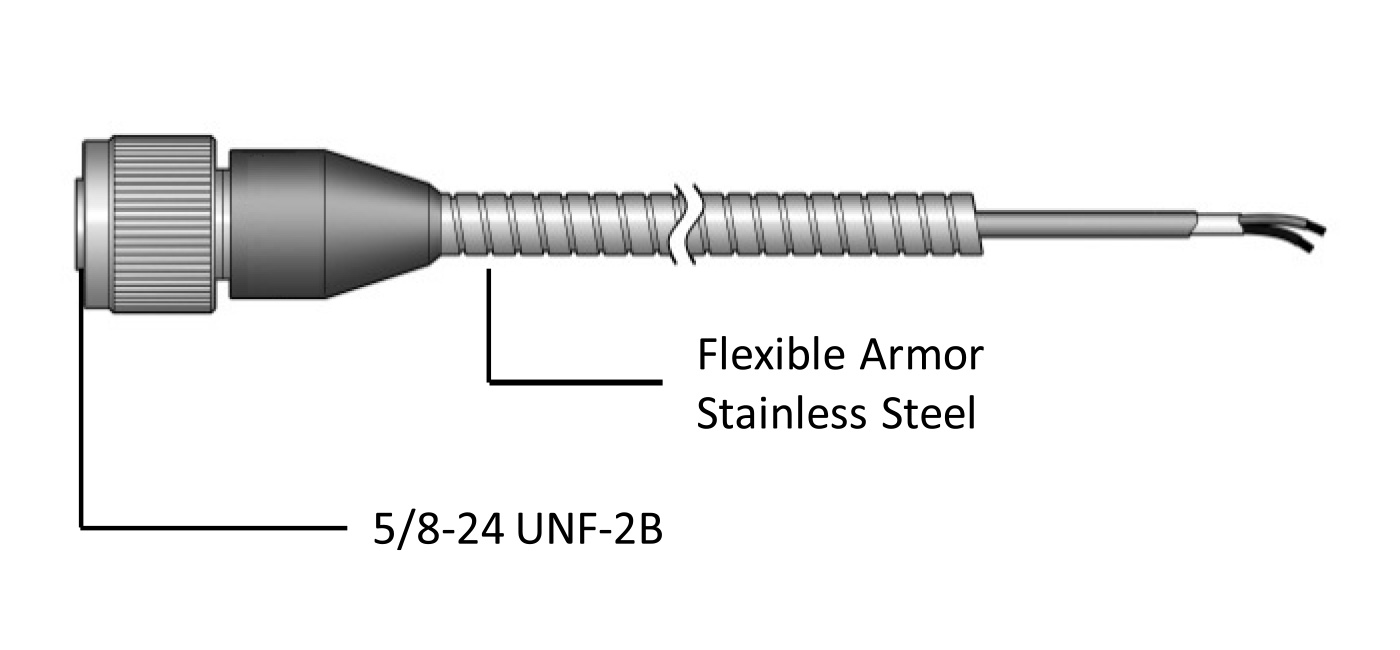

Straight Type, MIL-C-5015Female
Fig 4.
Straight Type, MIL-C-5015, Female

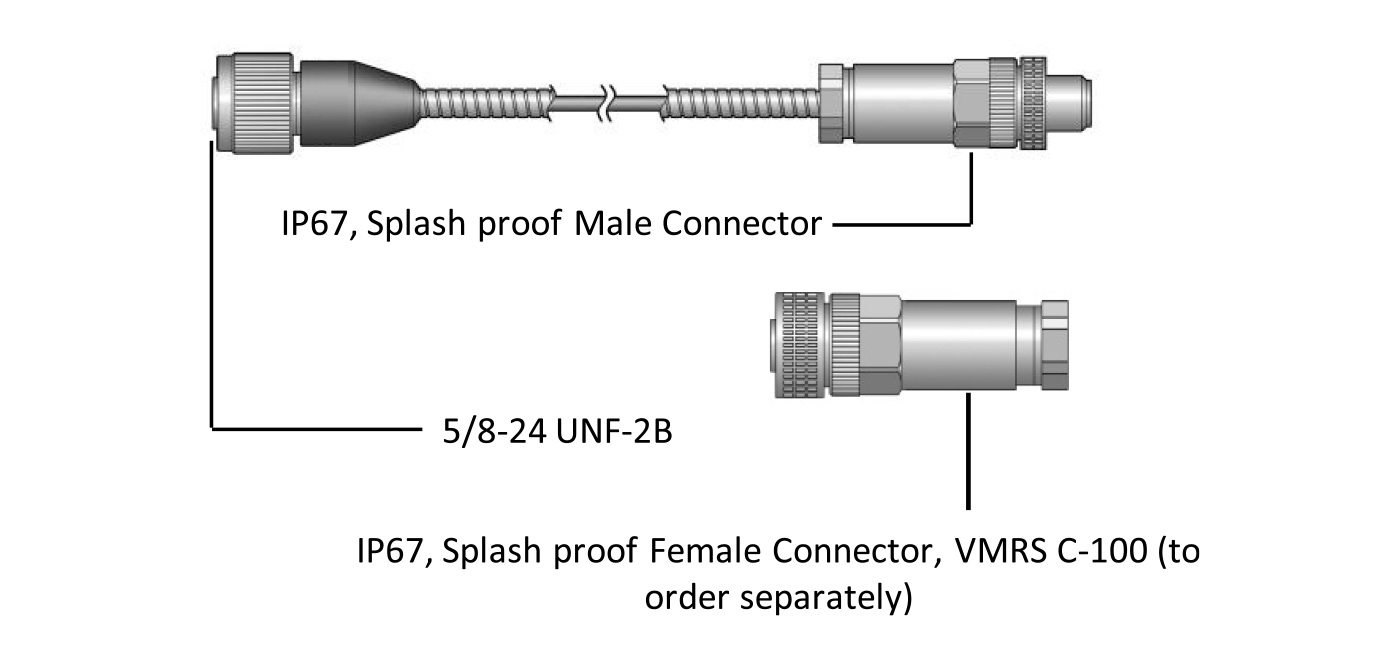

Fig 5.

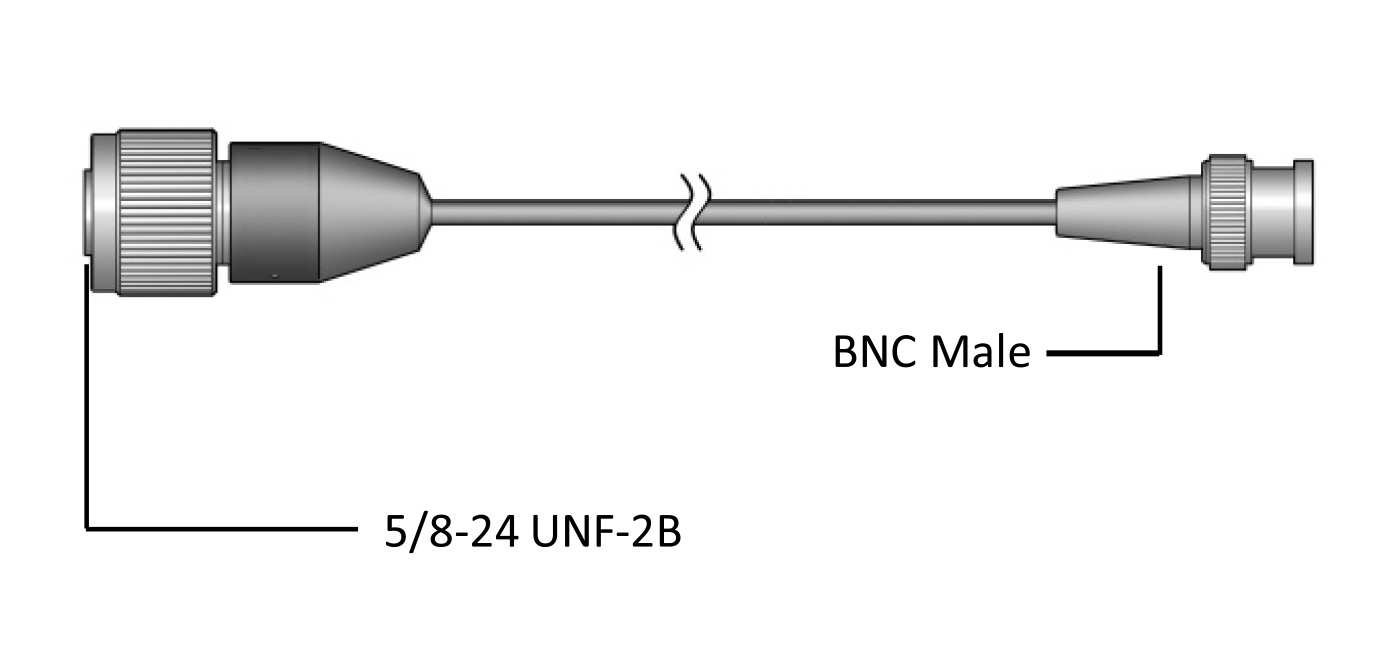

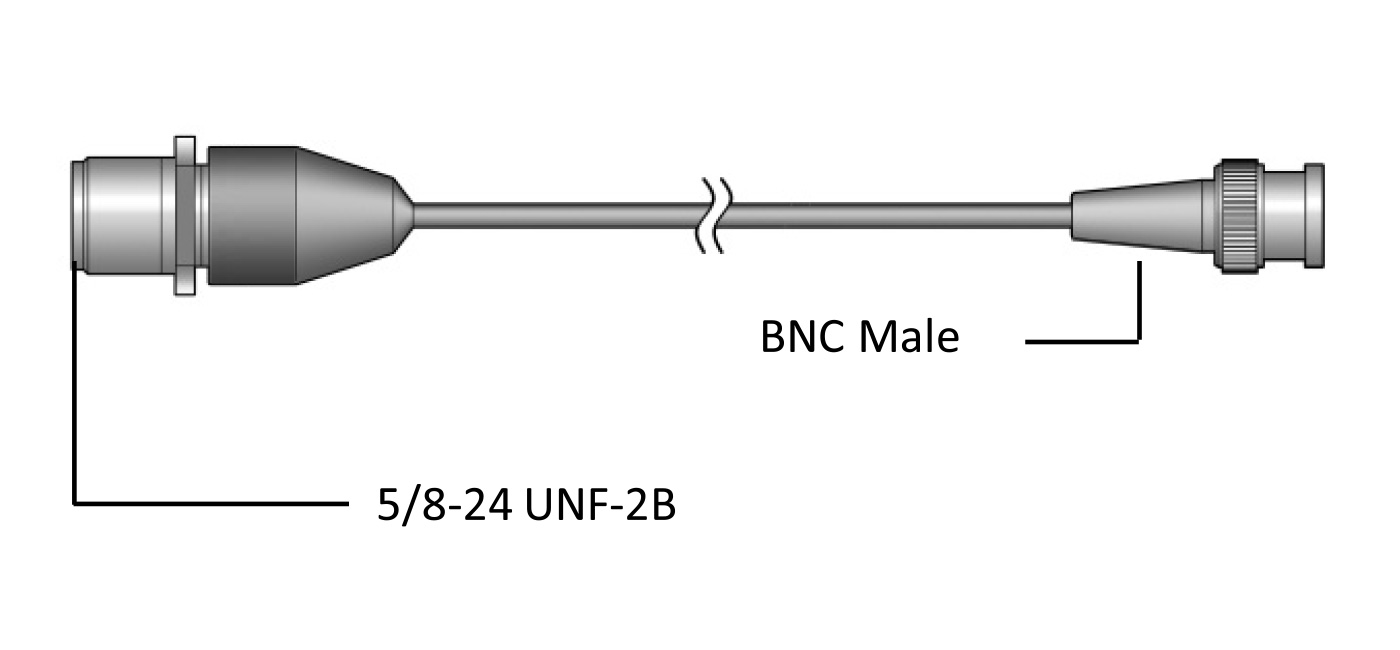

MIL-C-5015Female & BNC-Male
Fig 6.
MIL-C5015Male & BNC-Male
Ordering information

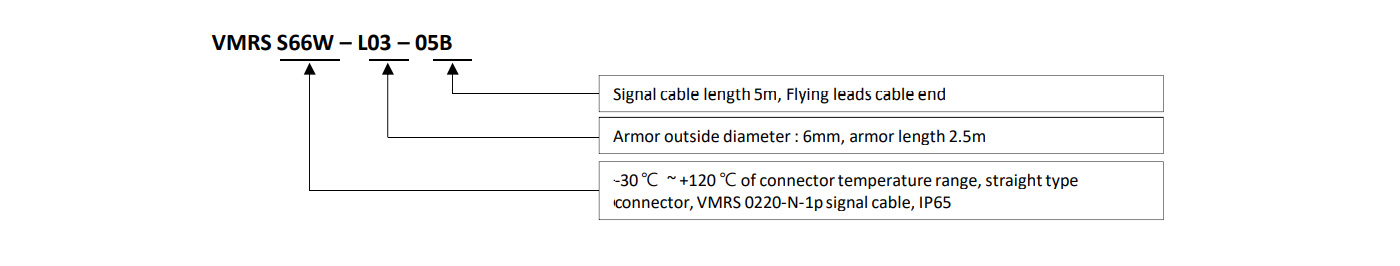

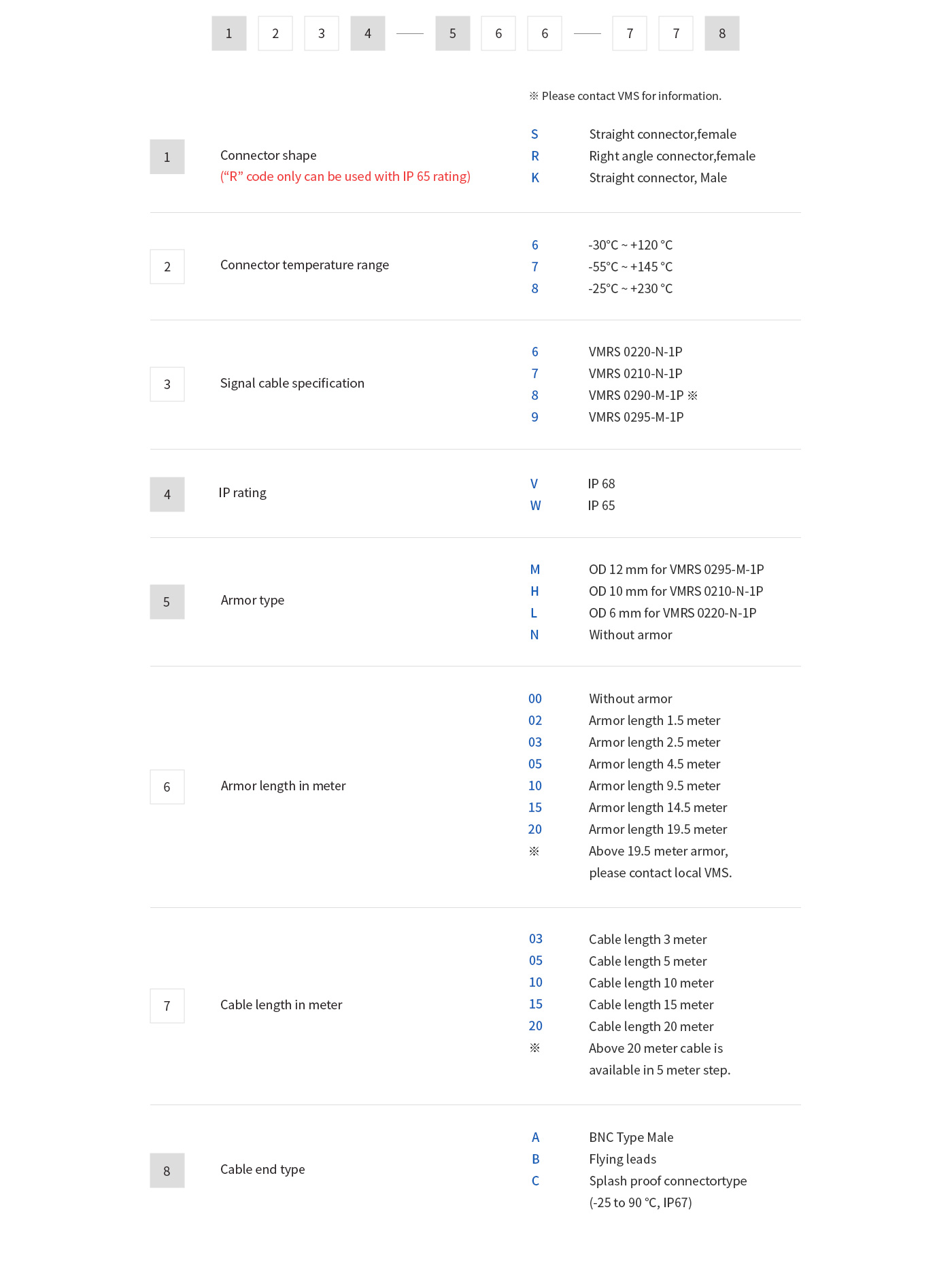

VMRS
Example
